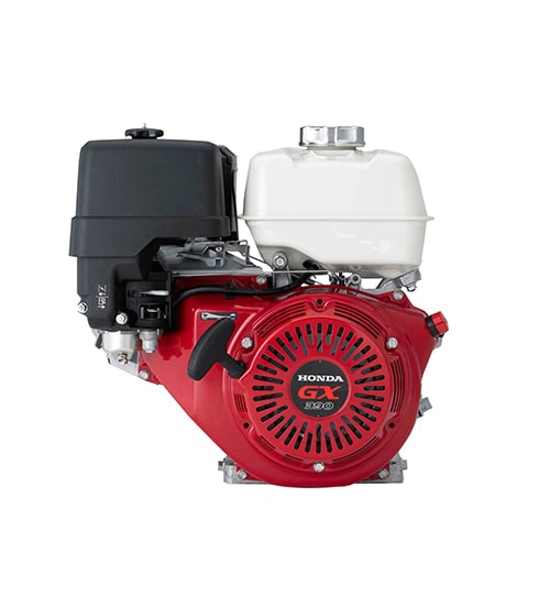

Honda GX390 - Replacement Engine
Product Code: GX390
Description
Description
Engine Type: Air-cooled 4-stroke OHV
Bore x Stroke: 88 X 64 mm
Displacement: 389 cm3
Net Power Output*: 11.7 HP (8.7 kW) @ 3,600 rpm
Net Torque: 19.5 lb-ft (26.4 Nm) @ 2,500 rpm
PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
Compression Ratio: 8.2:1
Lamp/Charge coil options: 25W, 50W / 1A, 3A, 10A, 18A
Carburetor: Butterfly Float Type
Ignition System: Digital CDI with variable timing
Starting System: Recoil/electric
Lubrication System: Splash
Governor System: Centrifugal Mass Type
Air cleaner: Dual element
Oil Capacity: 1.16 US qt (1.1 L)
Fuel Tank Capacity: 6.4 U.S. qts (6.1 liters)
Fuel: Unleaded 86 octane or higher
Dry Weight: 69 lb (31.5 kg)
Engine Type: Air-cooled 4-stroke OHV
Bore x Stroke: 88 X 64 mm
Displacement: 389 cm3
Net Power Output*: 11.7 HP (8.7 kW) @ 3,600 rpm
Net Torque: 19.5 lb-ft (26.4 Nm) @ 2,500 rpm
PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
Compression Ratio: 8.2:1
Lamp/Charge coil options: 25W, 50W / 1A, 3A, 10A, 18A
Carburetor: Butterfly Float Type
Ignition System: Digital CDI with variable timing
Starting System: Recoil/electric
Lubrication System: Splash
Governor System: Centrifugal Mass Type
Air cleaner: Dual element
Oil Capacity: 1.16 US qt (1.1 L)
Fuel Tank Capacity: 6.4 U.S. qts (6.1 liters)
Fuel: Unleaded 86 octane or higher
Dry Weight: 69 lb (31.5 kg)
